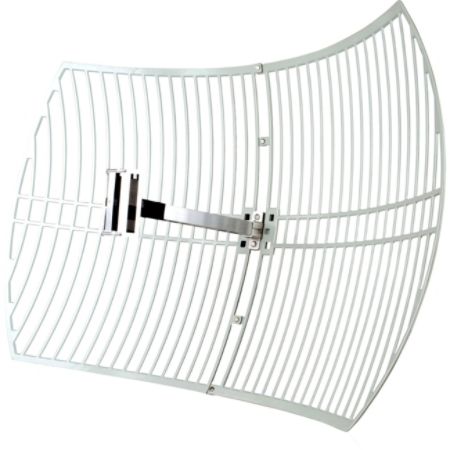

TP-LINK Grid Parabolic Antenna Item # 823657
Share
-
Email This Page
- Note: You can share Individual Items, entire Shopping Carts, and Shopping Lists.
-
Share this Item
Close
Print
823657
was removed.
Thank you, you will now be redirected to comparisons.
Just a moment while we prepare the page
Check In-Store Availability
Description
This antenna operates in the 2.4-2.4835 GHz band and is designed for use outdoors.
Product Details
| Item # | 823657 |
| OfficeMax # | 24025813 |
| Manufacturer # | GD6415 |
| height | 23.6 in |
| Vertical Beamwidth | 10° |
| width | 39.4 in |
| Product Name | TL-ANT2424B Grid Parabolic Antenna |
| Antenna Gain | 24 dBi |
| manufacturer | TP-LINK Technologies Co., Ltd |
| Number of Connectors | 1 |
| Compatibility | TL-WA601G Wireless Access Point; TL-ANT24PT Pigtail Cable; TL-ANT24EC6N Antenna Extension Cable |
| Application/Usage | Wireless Data Network |
| Polarization | Horizontal/Vertical |
| brand name | TP-LINK |
| frequency | 2.40 GHz to 2.48 GHz |
| Frequency Band Type | UHF |
| impedance | 50 Ohm |
| Application | Outdoor |
| Voltage Standing Wave Ratio (VSWR) | 1.5:1 |
| connector type | N-Type |
| form factor | Parabolic |
| model name | TL-ANT2424B |
| Horizontal Beamwidth | 14° |
| Frequency Range | 2.4 - 2.4835 GHz |
| Show More ▾ |
Customer Reviews
From the Manufacturer|
Overview
-
What This Product Does
The 2.4GHz 24dBi Grid Parabolic Antenna TL-ANT2424B is designed for the spread spectrum system, operates in the 2.4-2.5 GHz band, and provides 24dBi directional operation. The surface design with welded-steel reflector brings out the best performance. The TL-ANT2424B features high gain, long coverage, is light weight, wind-resistant, and has a compact structure. It is built for the outdoors and has a range of up to 35 miles.
-
Easy To Use
Installation of the TL-ANT2424B is simple and straight forward. It is compatible with most wireless devices (Access Points, Routers, Bridges and Network Adapters) on the market with removable external antennas.
See More:
Features
- Compliant with 802.11n/b/g (2.4GHz)
- 24dBi signal gain
- N Female connector
Specifications
| ANTENNA | |
|---|---|
| Dimension | 39.4 ×23.6 in （1000 x 600mm） |
| Weight | 7.7 lb |
| Frequency | 2.4GHz |
| Gain | 24dBi |
| VSWR(MAX.) | 1.5:1 |
| HPBW/H( °) | 14 |
| HPBW/V( °) | 10 |
| Polarization | Linear; Vertical |
| Type | Directional |
| Connector Type | N Female(Jack) |
| Extended Cable/Length | 30cm |
| Mounting | Pole Mount |
| Application | Outdoor |
| Approximate Range at 1/11/54Mbps | 56km/31.5km/4.44km |
| Optional Accessory | TL-ANT24EC6N TL-ANT24EC12N TL-ANT24SP TL-ANT24PT |
Package Contents
- 24dBi Grid Parabolic Antenna
- Installation mounting kits
- User Guide
Datasheet
-
TL-ANT2424B Datasheet
TL-ANT2424B Datasheet - opens PDF
PDF, 880K, 2 pages
